V-Guard | WinHot TRU-HOT Pro | Solar Water Heater (250 LPD ETC)
Brand: V-Guard
Inclusive of all taxes
Specifications
Highlights
- ManufacturerV-Guard Industries Ltd.
- BrandV-Guard
- Pack Size250 piece
- Weight72000 g
- PackagingCarton
- Shelf Life365 days
- Case Qty1
- FeatureV-Guard
- FeatureSolar Water Heater
- FeaturePR154458
- FeatureD2843278540
- FeatureV-Guard | WinHot TRU-HOT Pro | Solar Water Heater (250 LPD ETC)
Description

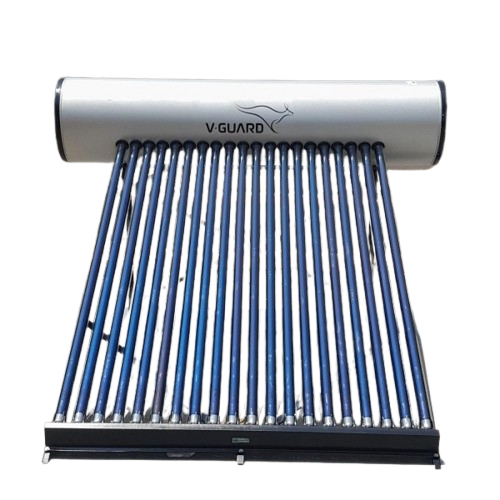

V-Guard TRU-HOT 250 PRO is an evacuated tube collector (ETC) solar water heater with a 250 litres per day capacity. It is designed for bathing and washing applications and is specified for households of about 6 to 7 persons. The system uses 20 ETC tubes of size 5.8 x 210 cm and works on thermosyphon circulation, with water output temperature specified as up to 40°C rise from ambient temperature. The storage tank uses an MS glass-lined inner tank with high-density PUF insulation, magnesium anode protection, and off-white PPGI outer cladding. An optional 2 kW backup heater with thermostat is specified for this model, and the support structure is a black powder-coated roll form stand for long life.
| Item form | Solar Water Heater |
| Country of origin | India |
Highlights
- 250 LPD evacuated tube collector solar water heater
- 20 ETC tubes of size 5.8 x 210 cm
- MS glass-lined inner tank
- High-density PUF insulation
- Magnesium anode protection
- Optional 2 kW backup heater with thermostat
- Suitable for 6-7 persons
- Thermosyphon circulation
Attributes
| Model | TRU-HOT 250 PRO |
| FG Code | 3003559 |
| Product Code | VG-250ETCPRO |
| System capacity | 250 Litres per day |
| Type of Collector | ETC (Evacuated Tube Collector) |
| ETC Specification | 3 Layer Tubes (Cu-SS-AlN) |
| Tank Mounting | Horizontal |
| Number of ETC | 20 |
| ETC Size | Ø5.8 x 210 cm |
| Application | Bathing / Washing |
| Utility Points | 4 |
| Number of Persons can use hot water | 6-7 |
| Back up Heater capacity (optional) | 2 kW with Thermostat |
| Support Structure | Roll Form Stand with Black Powder coating for long life |
| Working Pressure | Maximum 0.4 kg/cm² |
| Minimum Area required for installation | 2.4 x 2.3 m |
| System height from the base | 1.5 meter |
| OHT height from roof | Maximum 4 meter |
| Circulation | Thermosyphon type |
| Overnight Temperature Drop | ≤ 5°C |
| Weight of the Storage tank | 72 kg |
| Inlet and Outlet Piping | 1.9 cm (3/4) |
| Inner Tank | MS Glass Lined |
| Inner Tank/End dish Thickness | 2 mm (shell) / 1.8 mm (dish) |
| Tank Welding | High quality MIG Welding |
| Insulation | ≥50mm thick High density PUF insulation with uniform density of Minimum 36 kg/m³ |
| Outer Cladding | PPGI (Pre coated GI), Color: Off white |
| Outer Cladding Thickness | 0.4 mm |
| End Caps | 0.4 mm PPGI, Color: Off white |
| Anode Protection | Magnesium (200 mm Length for 100-250 LPD) |
| System Inclination Angle | 30 Degree |
| Tank Packing | 5 Ply Carton |
| Water Hardness handling capacity | Suitable for all kind of waters |
| Package A | Storage Tank & Accessories Kit - 1 Packet |
| Package B | Evacuated Tube Collector - 3 packets (10 N of tubes x 2) |
| Package C | Supporting Stand - 1 Packet |
| Package D | Tank seat - 1 Packet |
| Warranty | 10 Years (on-Tank) |
